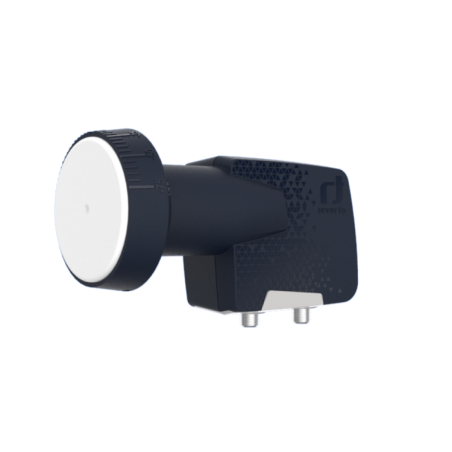

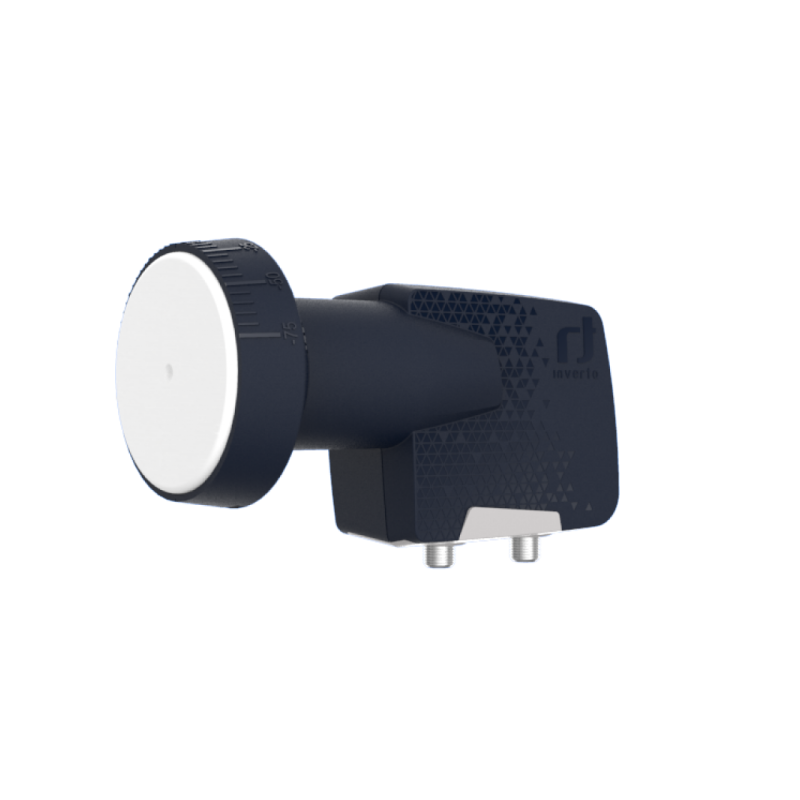

LNB Twin (2 Receptores), 55dB, 0,3dB ruido, cuello 40x70mm (An x Largo)
21,30 €
Impuestos excluidos
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
CARACTERÍSTICAS
- Ruido de fase bajo, compatible con DVB-S2 (HD y UHD)
- Figura de muy bajo ruido
- Bajo consumo de energía
- Aislamiento de alta polarización cruzada
- Estabilidad de alta frecuencia
| Technical specifications | |
|---|---|
| Input frequency range | 10.7 GHz ~ 12.75 GHz |
| Output frequency range | 950 MHz ~ 2150 MHz |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Noise figure | 0.2 dB typ. (0.7 dB max.) |
| LO frequency accuracy @ 25° C | ±500 kHz max. |
| LO temperature drift | ±1.0 MHz max. |
| LO phase noise @ 10 kHz | -80 dBc/Hz max. |
| Conversion gain | 55 dB min. |
| Gain ripple (over 26 MHz bandwidth) | ±0.6 dB |
| Gain variation (over full band) | ±3 dB |
| Image rejection | 40 dB min. |
| 3th order intermodulation - ICP3 | 10 dBm min. |
| 1 dB compression point (@ output) | 0 dBm min. |
| Cross polarization isolation | 22 dB typ. |
| Control signal Ca (V) | 11.0 V ~ 14.0 V |
| Control signal Cb (H) | 16.0 V ~ 20.0 V |
| Control signal Cc (band switching) | 22 kHz ±4 kHz, 0.4 V ~ 0.8 V pp |
| Output VSWR | 2.5 : 1 |
| In band spurious level | -60 dBm max. |
| Current consumption | 120 mA max. @ 11 VDC ~ 20 VDC |
| Operating temperature | -35 °C ~ +60 °C |
| Output impedance | 75 Ω |
| Output connector type | F-type (female) |
| Dish F/D ratio | 0.6 |
| Weight | 218 g |
| Logistical info | |
| Packaging dimensions (W x D x H) | 15.5 cm x 9.1 cm x 7.6 cm |
| Packaging weight | 0.278 kg |
| Quantity per Carton | 60 pcs |
| Carton dimensions (W x D x H) | 64.0 cm x 47.5 cm x 25.0 cm |
| Carton weight | 17.9 kg |
| Quantity per pallet | 32 ctns/plt |
