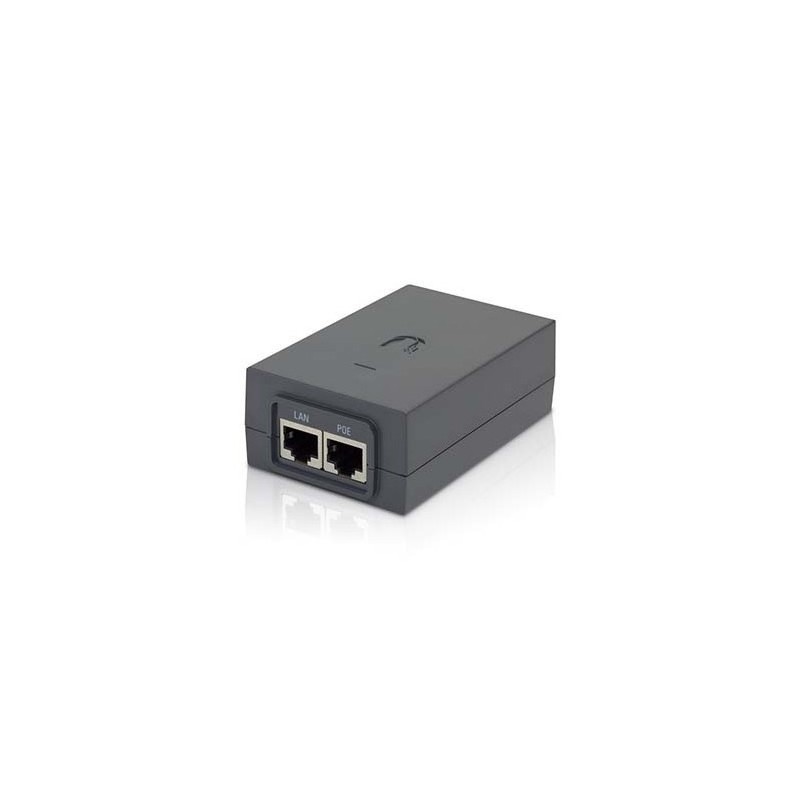

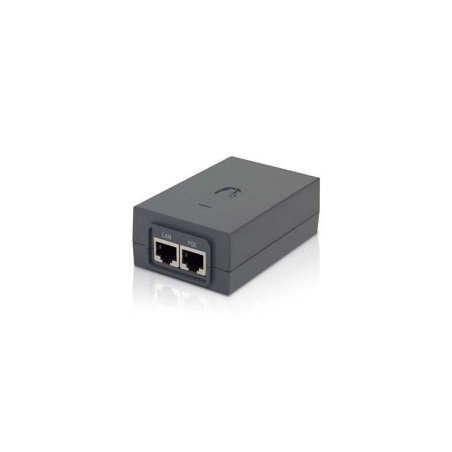

Adaptador POE 24V, 1.25A, 30W

POE-24-30W

Dimensions

94 × 60 × 33 mm (3.70 × 2.36 × 1.30")

Weight

156 g (5.5 oz)

Output Voltage

24VDC @ 1.25A

LAN Activity Indicator

No

Gigabit LAN Port

Yes

Remote Reset Capability

No

Reset Button

No

Input Voltage

100-240AC @ 50/60Hz

Input Current

0.6A @ 120VAC, 0.4A @ 240VAC

Inrush Current

<40A Peak @ 120VAC,
<70A Peak @ 230VAC

Efficiency

83+%

Output Ripple

1% Max

Switching Frequency

65 kHz

Line Regulation

± 1%

Load Regulation

± 3%

2-Pair Powering

4-Pair Powering

–

Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)

Operating Temperature

0 to 40°C (32 to 104°F)

Storage Temperature

-30 to 70°C (-22 to 158°F)

Operating Humidity

35 to 95% Non-Condensing

AC Connector

IEC-320 C6

Data IN / POE

RJ45 Shielded Socket

Surge Protection

Difference and Common Mode

Clamping Protection

11V Data, 60V Power

Max. Surge Discharge

1500A (8/20 µs) Power

Peak Pulse Current

36A (10/1000 µs) Data

Shunt Capacitance

<5 pf data

Response Time

<1 ns

Compliance

IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B

AC Cable with Earth Ground

EU, AR, BR, UL/cUL, CCC, Mexico, RCM
